LIYI IEC60529 IP5X/6X Environmental 125L Sand Dust Test Chamber

1 Set
MOQ
3000~8000USD
Price
LIYI IEC60529 IP5X/6X Environmental 125L Sand Dust Test Chamber
Features Gallery Product Description Request A Quote
Features
Specifications
Material: 304# Stainless Steel
Standards: IEC60529 IP5X/6X
Controller: Touch Screen Programmable
OEM: Offered
Voltage: 220V,50HZ Or Customize
Warranty: 1 Year
Inner Chamber Size: 500*500*500mm
MOQ: 1 Set
High Light:

IP5X sand and dust test chamber

,

125L sand and dust test chamber

,

125L Sand Dust Test Chamber

Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-SC500
Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 20-30 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Product Description

LIYI IEC60529 IP5X/6X Environmental 125L Sand Dust Test Chamber



Introductions:

       IEC Standard Sand And Dust Test Chamber is designed according to GB4706,GB2423,GB7000.1,IEC60529,ect standards and meet the IPX5 and IPX6 dust test requirements. It is maily used for testing control cabinet, household appliances, low voltage electric appliance, automobile, lamps and lanterns, motorcycle parts,ect outer shells. Test chamber pressure can be constant and changed, suitable for indoor low concentration dust pollution test, assessment sample in this environment of sealing and corrosion degree.

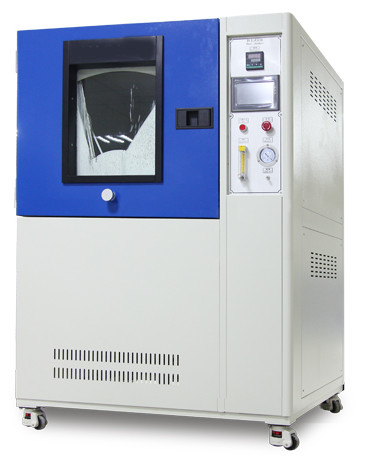

LIYI IEC60529 IP5X/6X Environmental 125L Sand Dust Test Chamber 0

Application background:

      The damage of natural dust (sand dust, wind dust, dust, etc.) to products and materials causes economic loss which is hard to estimate every year. The damage caused mainly includes corrosion, fading, deformation, strength reduction, expansion, mildew, etc., especially the electrical products are easy to cause fire due to short circuit caused by dust. Therefore, it is an essential key procedure to carry out dust-proof test for specific products or materials.



General application: outdoor lamps, household appliances, auto parts and other electronic and electrical products.



Equipment function:

       The main function of the equipment is to test the physical and other related properties of the products under the simulated dust climate conditions, such as electronic and electrical products, lamps, cabinets, electrical components, automobiles, motorcycles and their parts. After the test, judge whether the performance of the product meets the requirements through verification, so as to facilitate the design, improvement, verification and delivery inspection of the product.



Standards:

IEC60529:1989 +A1:1999 +A2:2013

GB4208-200813.4,13.5 and picture3

GB7000.19.2.1,9.2.2 and picture6.

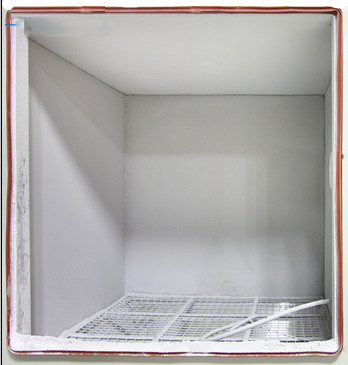

LIYI IEC60529 IP5X/6X Environmental 125L Sand Dust Test Chamber 1



Machine specifications:

Basic parameters
Inner chamber size L500*D500* H500mm
Overall size L 950* D720* H1470mm
Temperature range RT+10~70℃ (can customize, confirm before order)
Related humidity 45%~75%(can not display)
Standard wire diameter of metal mesh 50um
Standard spacing between lines of mesh 75um
Amount of talcum powder 2~4kg/m
Powder type Dry talcum powder
Dust reduction mode Free falling dust
Test time 0-999H (adjustable)
Vibration time 0-999H(adjustable)
Timing accuracy ±1s
Vacuum degree 0—10Kpa(adjustable)
Vacuum speed 0-4800L/H(adjustable)
Power parameters
Machine power source 220V
Sample power source 220V
Rate 1.5KW
Safty function Leakage protection, short circuit protection



Structure:

1. With sealing good chamber door, has lock device and glass observation window.There is lamp and dust brush to ensure easy observation of inner chamber.

2. With strong dust blowing device and vibrator to ensure iniformity of each blowing.

3. Circulating air suuplying device: Frequency converter and high pressure motor to ensure the air volume more precision.

4. Large diameter strong stainless steel air hose, covered with heating device, can heat anddry the test chamber dust.

5. Anti-explosion handle, easy operation, strurdy and durable.

6. Imported high-precision electronic temperature humidity sensor and air speed sensor.

7. There is a ψ50mm test hole on the left chamber and equiped with port lid and silica gel chock plug. Through this hole can conenct to outer test device.

8. There are casters with brake equipments and fixing foot pad to make the machine easy operation and level adjustment.

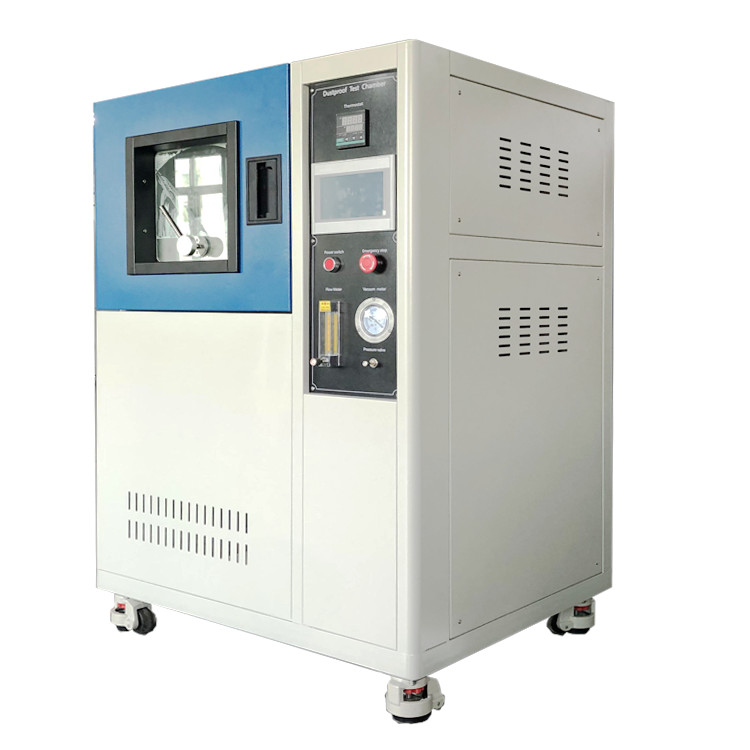

LIYI IEC60529 IP5X/6X Environmental 125L Sand Dust Test Chamber 2



Our service:

During the whole business process, we offer Consultative Selling service.



1) Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2) Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3) Order process:

We offer below business term:

Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency: USD, EUR, HKD, CNY
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port: Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

4) Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

5) Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
