PLC Touch Screen Control Battery Testing Chamber Washing LIYI

1 Set
MOQ
$2680~7880USD
Price
PLC Touch Screen Control Battery Testing Chamber Washing LIYI
Features Gallery Product Description Request A Quote
Features
Specifications
Power: 6kw
Power Supply: AC220V
Equipment Weight: 230kg230kg
Overall Dimension: 1200x1150x1880 Mm (W X D X H)
Control Mode: PLC Touch Screen Control
Drive Mode: Servo Motor Drive
High Light:

PLC Touch Screen Battery Test Chamber

,

6kw Battery Test Chamber

,

PLC Touch Screen Battery Testing Chamber

Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-6011
Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 15 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Product Description

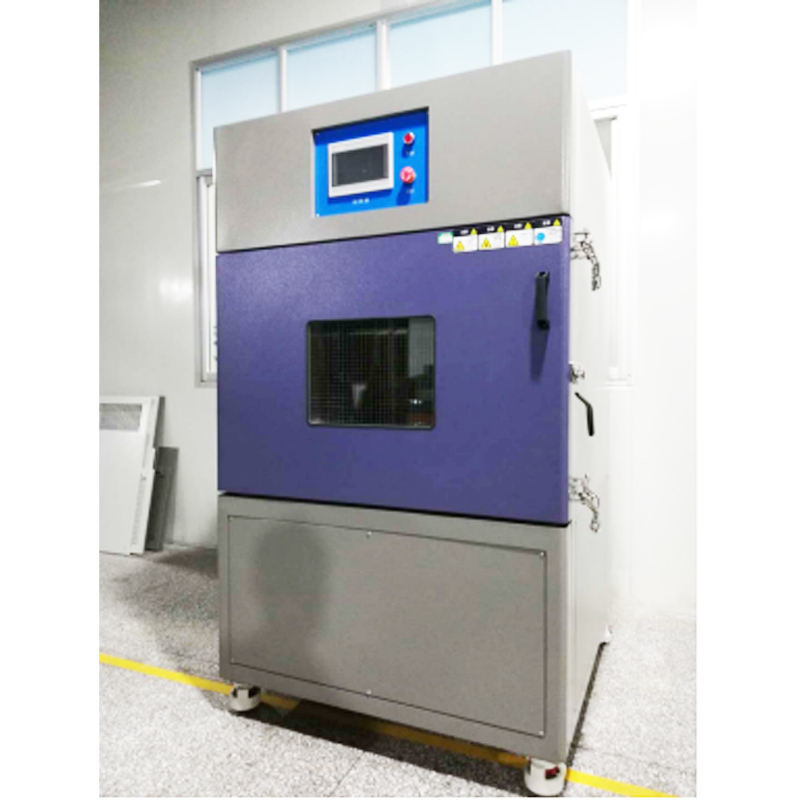

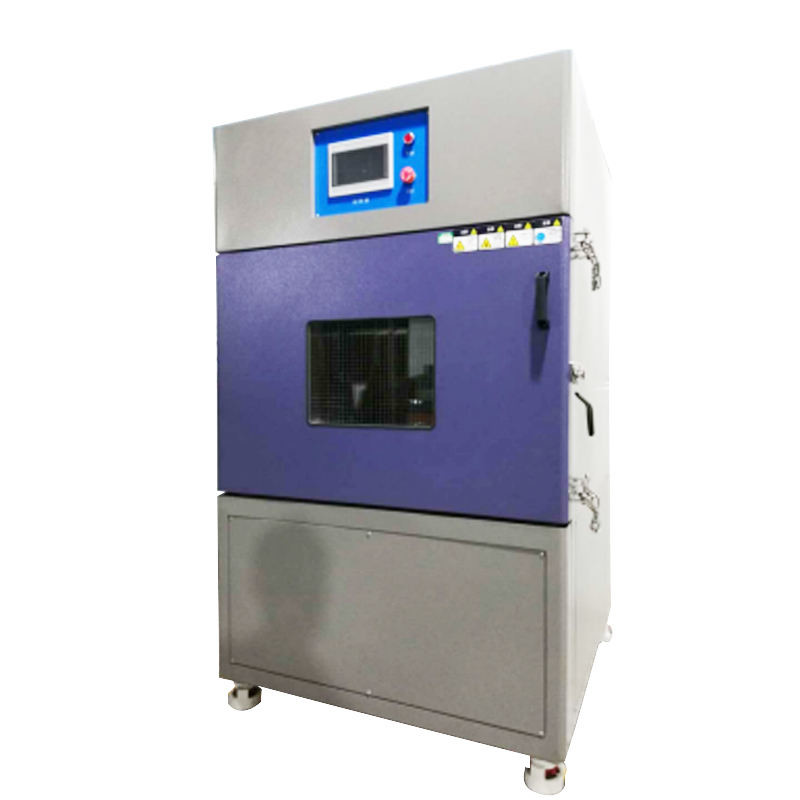

LIYI PLC Touch Screen Control Battery Washing Tester Battery Test Chamber



Product overview:

The battery washing test rack body is provided with a test box, the lower part of the test box body is provided with a washing box, the test box body is provided with a rotary paddle, the side of the test box body is provided with a drying device, the input end of the rotary paddle is connected with a drive motor, the washing box is a box with a lifting structure, the washing box is lifted up and forms a sealed cavity with the upper edge of the test box body, the rack body is provided with a control panel and a water tank, and the washing box is connected with the water tank through a pipe, The structure design is scientific, which solves the problem that the battery washing is completely carried out by manual steps, greatly shortens the test time, improves the test accuracy, and saves time and effort.





Specifications:



Control mode: PLC touch screen control
Drive mode: servo motor drive
Solution temperature range: normal temperature ~ 80 ℃ (adjustable), common temperature is 45 ± 2 ℃
Outer diameter of test turntable: Ø 500 ± 10mm
Test inner barrel diameter: 650mm
Test inner barrel depth: 600mm
Rotary table speed: 1-850r / min adjustable
Inner box material: sus # 304 stainless steel
Outer box material: cold rolled steel plate baking treatment
Test time: 0-9999h / M / s adjustable
Temperature control mode: p.i.d control
Washing solution: prepare a solution with pH value of 11.0 ± 0.1 (NaOH solution with mass fraction of 0.004% can be used), and heat the solution to (45 ± 2) ℃
Power supply AC220V





PLC Touch Screen Control Battery Testing Chamber Washing LIYI 0PLC Touch Screen Control Battery Testing Chamber Washing LIYI 1



Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency: USD, EUR, HKD, CNY
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port: Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

PLC Touch Screen Control Battery Testing Chamber Washing LIYI 2



FAQ

Q: Are your company a trading one or a factory ?

A: We have our own factory and we have also register a trading company for more options (in order to make the business more simple) for more than 18 years focusing on test instruments field and 15 years exporting experience. As one of the toppest supplier in Dongguan, OEM/ODM is warmly welcome from all of you as long as you confirm us with your requirement.



Q: How to choose the most suitable products?

A: Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.



Q: What's the delivery term?

A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.



Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.



Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.



Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.



Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.



Q: How to install and use the product?

A:About the machine you grt from us, we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance
