LIYI 304 Stainless Steel Internal Short Circuit Tester , PLC Battery Test Chamber

1 Set
MOQ
$1680~5680USD
Price
LIYI 304 Stainless Steel Internal Short Circuit Tester , PLC Battery Test Chamber
Features Gallery Product Description Request A Quote
Features
Specifications
Temperature Range: - 10 ℃ ~ 100 ℃
Analytical Accuracy: 0.1 ℃
Temperature Fluctuation: ± 0.5 ℃
Temperature Uniformity: ± 2 ℃
Heating Rate: 3 ℃ / Min
Cooling Rate: 1 ℃ / Min
Inner Box Size: 500x500x600mm (L X W X H)
Outer Box Size: 1050x1500x2100mm (L X W X H)
High Light:

PLC Short Circuit Tester

,

304 Stainless Steel Short Circuit Tester

,

PLC Battery Test Chamber

Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-6003Q
Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 15 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Product Description

LIYI 304 Stainless Steel PLC Battery Forced Internal Short Circuit Tester Battery Test Chamber



Product overview:

The battery forced internal short-circuit test machine is used to simulate the forced internal short-circuit test of the battery under certain environmental temperature conditions. The test box is made of stainless steel, with good temperature uniformity and air exhaust function (i.e. the test exhaust gas is discharged after the test is completed). The control system of the testing machine is PLC touch screen menu operation, and the data collection frequency can reach 100 times / second. At the same time, the test pressure, pressure holding time, measured pressure, battery voltage, battery temperature, voltage drop speed, etc. are programmed by PLC.

Technical parameters of temperature control system:

1. Temperature range: - 10 ℃ ~ 100 ℃

2. Analytical accuracy: 0.1 ℃

3. Temperature fluctuation: ± 0.5 ℃

4. Temperature uniformity: ± 2 ℃

5. Heating rate: 3 ℃ / min

6. Cooling rate: 1 ℃ / min

8. Inner box size: 500x500x600mm (L x W x H)

9. Inner box material: 304 stainless steel plate, bottom reinforced

10. Outer box size: 1050x1500x2100mm (L x W x H)

11. Temperature control system: Guangzhou Youyi temi system controller



Technical parameters of pressure system:

1. Test load: commonly used 80kg (maximum 100kg)

2. Load resolution: 1 / 10000

3. Unit conversion: kg, LB, n

4. Load accuracy: FS ≤± 0.5%

5. Resolution: ± 0.5%

6. Displacement accuracy: ± 0.05mm

7. Speed range: 0.01 ~ 20mm / s, adjustable (common test speed: 0.1mm/s)

8. Effective stroke: 100mm

9. Test plane: 200X200mm (customizable)

10. Voltage collection range: 0 ~ 20V

11. Voltage resolution: 0.1mv

12. Voltage acquisition frequency: 100 times / S

13. Indenter size: 5x5x2mm or 10x10x2mm or 10x10x15mm

14. Indenter material: one piece of NBR and one piece of acrylic

15. Control system: PLC control





Specifications:



Specifications Parameter
Environmental requirements for equipment use Temperature below 35 ℃, humidity below 80%
Power Supply AC220V,50/60Hz
Source of water Nothing
Vcuum Nothing
Compressed air Nothing
Ground requirements and bearing requirements Concrete ground, ≥ 600kg,
Network requirements Nothing
Construction requirements for smoke, dust, waste gas and wastewater treatment plant Exhaust gas discharge port diameter: 100mm

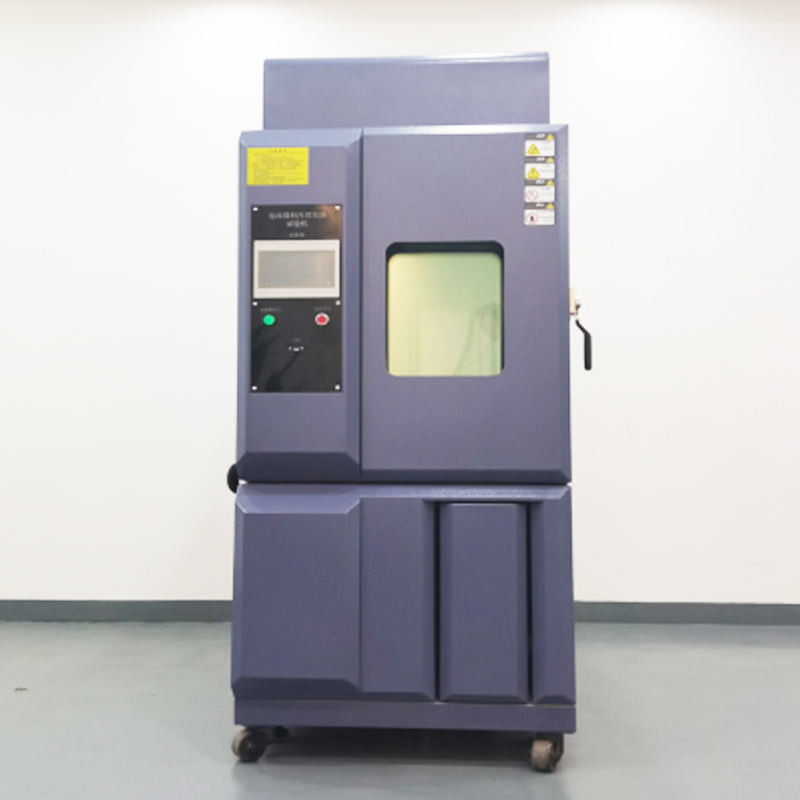

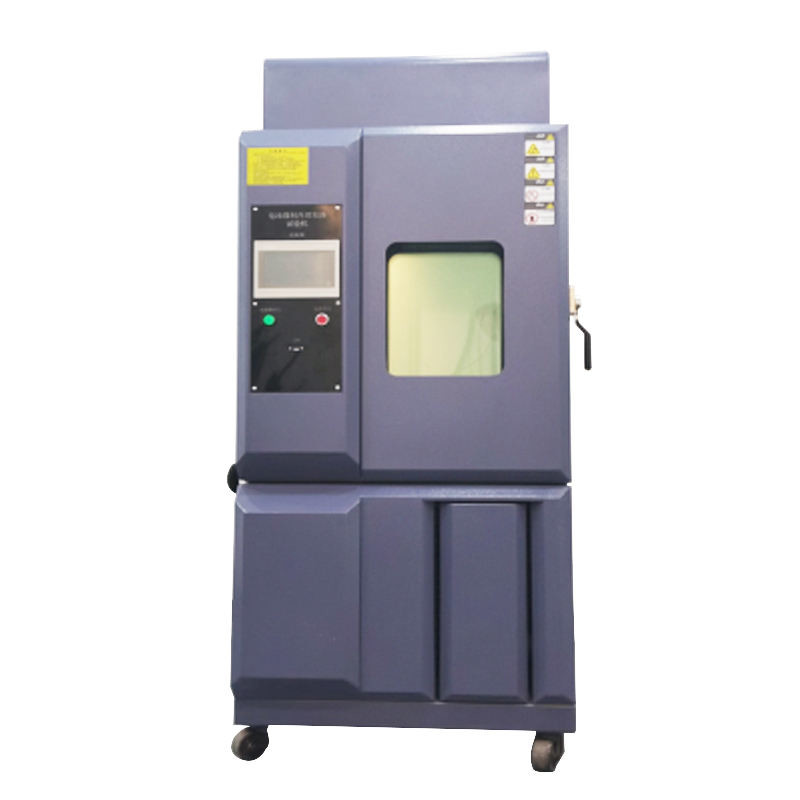

LIYI 304 Stainless Steel Internal Short Circuit Tester , PLC Battery Test Chamber 0LIYI 304 Stainless Steel Internal Short Circuit Tester , PLC Battery Test Chamber 1

Thermal Abuse Test Chamber

Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency: USD, EUR, HKD, CNY
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port: Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired





LIYI 304 Stainless Steel Internal Short Circuit Tester , PLC Battery Test Chamber 2



FAQ

Q: Are your company a trading one or a factory ?

A: We have our own factory and we have also register a trading company for more options (in order to make the business more simple) for more than 18 years focusing on test instruments field and 15 years exporting experience. As one of the toppest supplier in Dongguan, OEM/ODM is warmly welcome from all of you as long as you confirm us with your requirement.



Q: How to choose the most suitable products?

A: Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.



Q: What's the delivery term?

A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.



Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.



Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.



Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.



Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.



Q: How to install and use the product?

A:About the machine you grt from us, we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance
