LIYI 2*2*2M 150 Degree Constant Temperature Humidity Walk In Test Chamber
1 Set
LIYI 2*2*2M 150 Degree Constant Temperature Humidity Walk In Test Chamber
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: LIYI
Certification: CE
Model Number: LY-WR10
High Light:

150Degree Walk In Test Chamber


Walk In constant temperature humidity test chamber


150Degree constant temperature humidity test chamber

Payment & Shipping Terms
Packaging Details: Plywood pallet box
Delivery Time: 30-60 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets per month
Material: Inner 304# Stainless Steel
Inner Size: 2.5*2.2*2m
Controller: Touch Screen Programmable
OEM: Offered
Voltage: 380V
Warranty: 1 Year
Compressor: Imported Compressor
Accuracy: 0.5℃ ±2.5%RH
Temperature Range: -40°C~150°C/-70°C~150°C
Humidity Range: 20%~98% / 5%~98%
Product Description

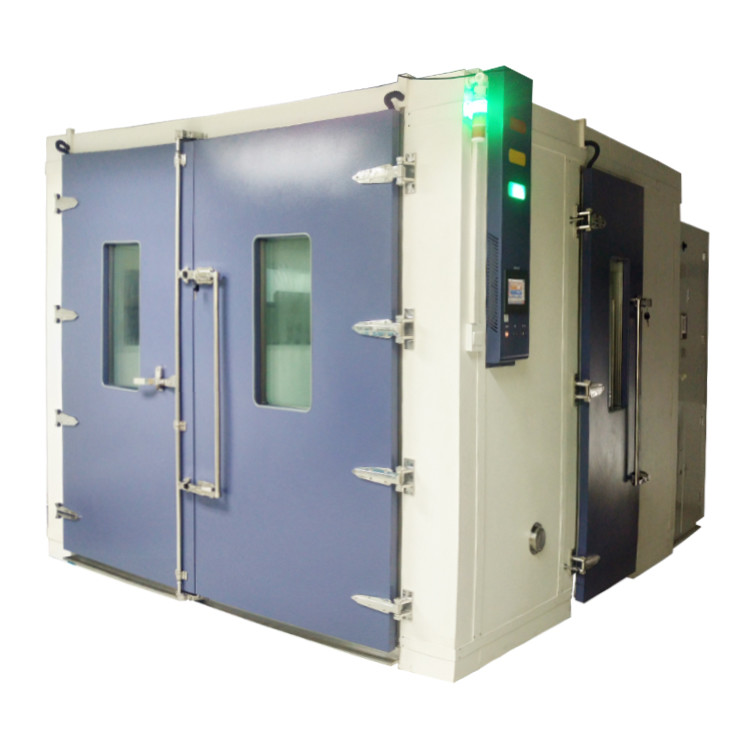

LIYI 2*2*2M 150 Degree Constant Temperature Humidity Walk In Test Chamber


       Liyi Large Walk in Humedad constante Temperature Humidity Test Chamber Walk in Environmental Chamber is suitable for the whole machine or large parts of low temperature, high temperature, high and low temperature change, constant time heat, high and low temperature alternating moisture and heat test...

        The size and function of the studio can be customized according to user requirements. Pieced box body, beautiful and generous shape; Scientific airway design can meet the needs of different customers.


LIYI 2*2*2M 150 Degree Constant Temperature Humidity Walk In Test Chamber 0

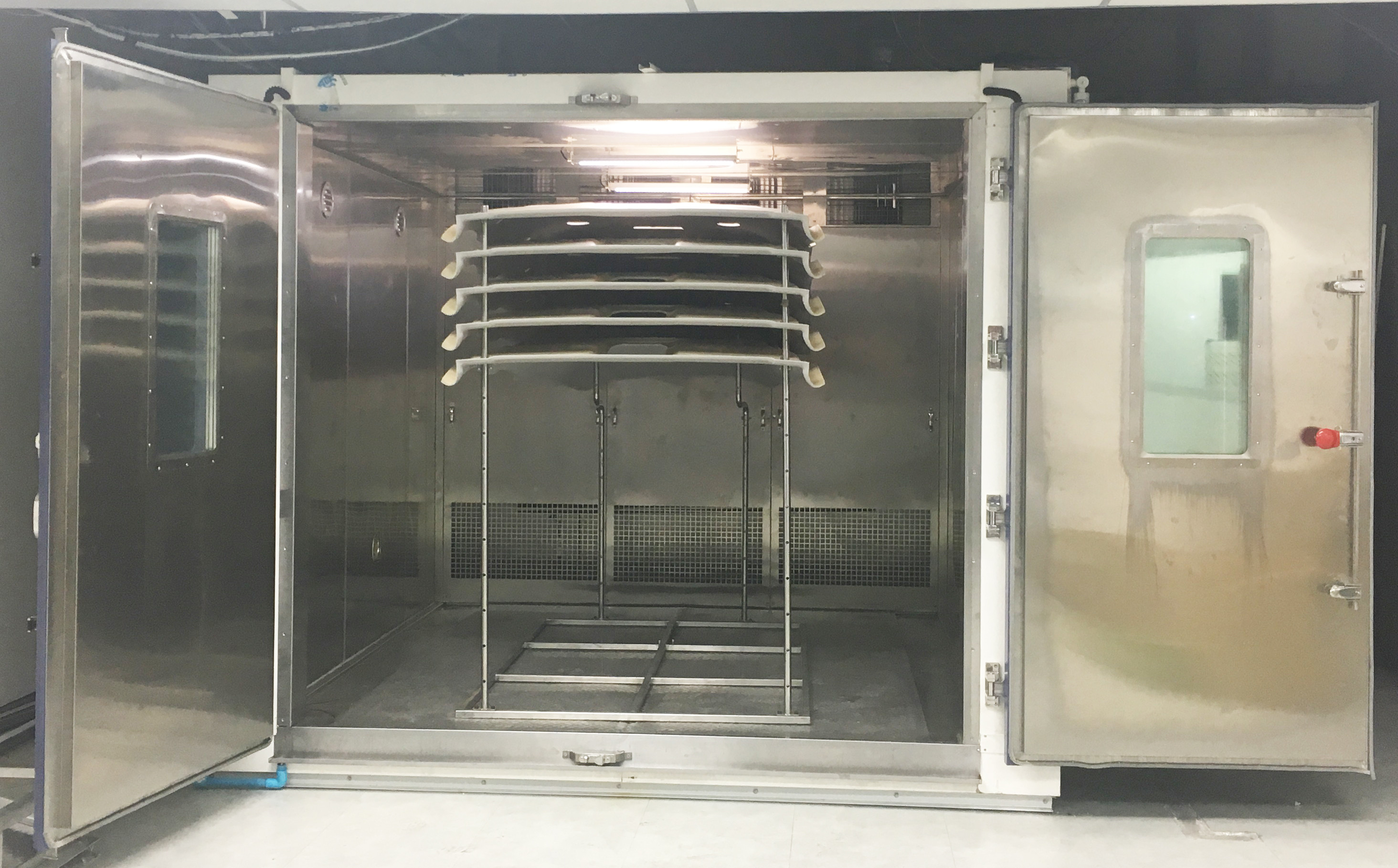

Structure Features

Wall material:Top-grade Carbon Steel Plate,Surface electrostatic color Spray processing

Inner wall material:Stainless Steel Plate SUS304

Body insulation material:Rigid polyurethane Foam + glass fiber

Door insulation material:Rigid Polyurethane Foam + Glass fiber


LIYI 2*2*2M 150 Degree Constant Temperature Humidity Walk In Test Chamber 1




Volume 10m3 , 15m3 , 20m3, 30m3, 50m3, 100m3 , as per customer Requirements
Temperature Range -70~150C
Humidity Range 20%~98%RH
Accuracy/Uniformity ±0.1 °C , ±0.1%R.H. / ±1.5 °C ,±5.0%R.H.
Accuracy/Volatility ±1.0 °C , ±2.0%R.H./±0.5 °C , ±3.0%R.H.
Cooling Time 5.0 °C /minute
Inside Material SUS#304 Stainless Steel
Insulation Material High-temperature high-density amino acid ethyl ester foam insulation materials
Cooling System Water-cooled / two-stage compressor
Protection No fuse switch, compressor overload switch, high and low pressure protective switch, over-humidity-temperature protective switches, fuses, warning system
Accessories Recorder(option), view window, 50mm diameter testing hole, PL lamp, clapboard, Dry and wet gauze ball
Controller Touch screen programmable controller
Compressor France's Tecumseh Brand or Germany
Power 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz



IEC60068-2-1.1990 testing methods for low-temperature

IEC60068-2-2.1974 testing methods for high-temperature

GB11158 Technical conditions for high-temperature testing room

GB10589-89 Technical conditions for low-temperature testing room

GB/T10586-89 technical conditions for humidity testing room

GB/T2423.1-2001 testing methods for low-temperature

GB/T2423.2-2001 testing methods for high-temperature

GB/T2423.3-93 technical conditions for humidity testing room

GB/T2423.4-93 testing method for alternating hot and humid

GJB150.3 High-temperature test

GJB150.4 Low-temperature test

GJB150.9 muggy test

GB/T2423.22 temperature test


Flexibility for structure
     The panels used in our chamber are 4” (100mm or 150mm) Thick urethane-foam sandwiched between a stainless-steel interior wall and a coated-steel exterior. An assembled box is self-supporting. So that no heavy structural members are required. Different door sizes, flooring upgrades,access ports, and other modifications are possible.


LIYI 2*2*2M 150 Degree Constant Temperature Humidity Walk In Test Chamber 2


LIYI 2*2*2M 150 Degree Constant Temperature Humidity Walk In Test Chamber 3





Our service:

During the whole business process, we offer Consultative Selling service.


1) Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2) Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3) Order process:

We offer below business term:

Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency: USD, EUR, HKD, CNY
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port: Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

4) Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

5) Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
