Liyi Environmental Temperature Humidity Test Chamber Walk In Climate Chamber

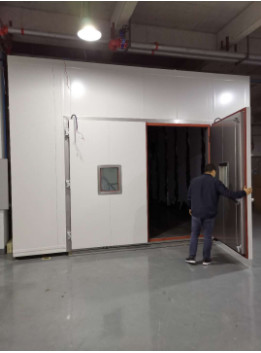

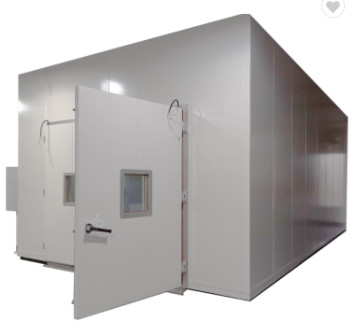

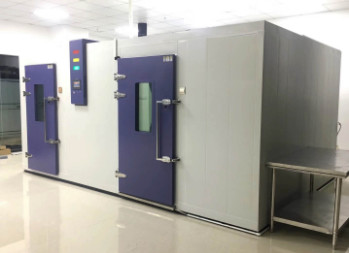

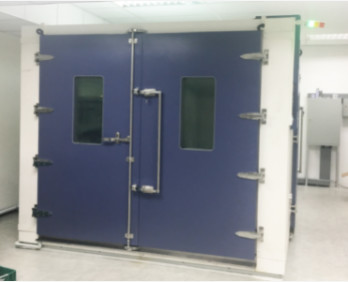

Liyi Walk-In Chamber serves as a test site for large components, assemblies, and finished products in electrical and electronics, aerospace, batteries and automobiles, etc. Liyi manufactures both Static Walk-In Chambers and Dynamic Walk-In Chambers and can be configured as a temperature chamber or a temperature humidity chamber.
Walk-in temperature and climate test chambers are especially developed for large test specimens. Size and design are optimal loading of test specimens. The modular construction and variability in size and equipment is ideally forspecific application.
Standard Met and Implemented:
|IEC60068-2-1 low temperature test method|
|IEC60068-2-38 temperature cycle|
|IEC60068-2-78 constant humidity temperature|
|Volume||10m3 , 15m3 , 20m3, 30m3, 50m3, 100m3 , as per customer Requirements|
|Accuracy/Uniformity||±0.1 °C , ±0.1%R.H. / ±1.5 °C ,±5.0%R.H.|
|Accuracy/Volatility||±1.0 °C , ±2.0%R.H./±0.5 °C , ±3.0%R.H.|
|Cooling Time||5.0 °C /minute|
|Inside Material||SUS#304 Stainless Steel|
|Insulation Material||High-temperature high-density amino acid ethyl ester foam insulation materials|
|Cooling System||Water-cooled / two-stage compressor|
|Protection||No fuse switch, compressor overload switch, high and low pressure protective switch, over-humidity-temperature protective switches, fuses, warning system|
|Accessories||Recorder(option), view window, 50mm diameter testing hole, PL lamp, clapboard, Dry and wet gauze ball|
|Controller||Touch screen programmable controller|
|Compressor||France's Tecumseh Brand or Germany Bitzer|
|Power||1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz|
Dongguan Liyi Environmental Technology Co., Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing, marketing all kinds of environmental equipment. Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.
Our company mainly produce simulated environmental tester, plastic and rubber tester etc. on all kinds of materials testing industries. The production base is located in the country’s manufacturing center Dongguan, Guangdong province, China. In order to service our customers better in terms of reducing costs and early delivery, in 2005 we had set up an office in Kunshan, Jiangsu province for Eastern China marketing and servicing.
Liyi deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.
Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
We offer below business term:
|Accepted Delivery Terms||FOB, CFR, CIF, EXW, DDP|
|Accepted Payment Currency||USD, EUR, HKD, CNY|
|Accepted Payment Type||T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow|
|Nearest Port||Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired|
4)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
5)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
